Point Chromatic Confocal Displacement Sensor Controller – A Series

Sub-micron resolution.
Sampling speed up to 13 kHz.
Rich interface options, supporting multiple analog outputs and three-axis AB encoder input/output.
Standalone operation, ready to use.
Compatible with complex materials, including transparent, translucent, mirror-like, highly reflective, highly light-absorbing, metal, plastic, ceramic, and more.

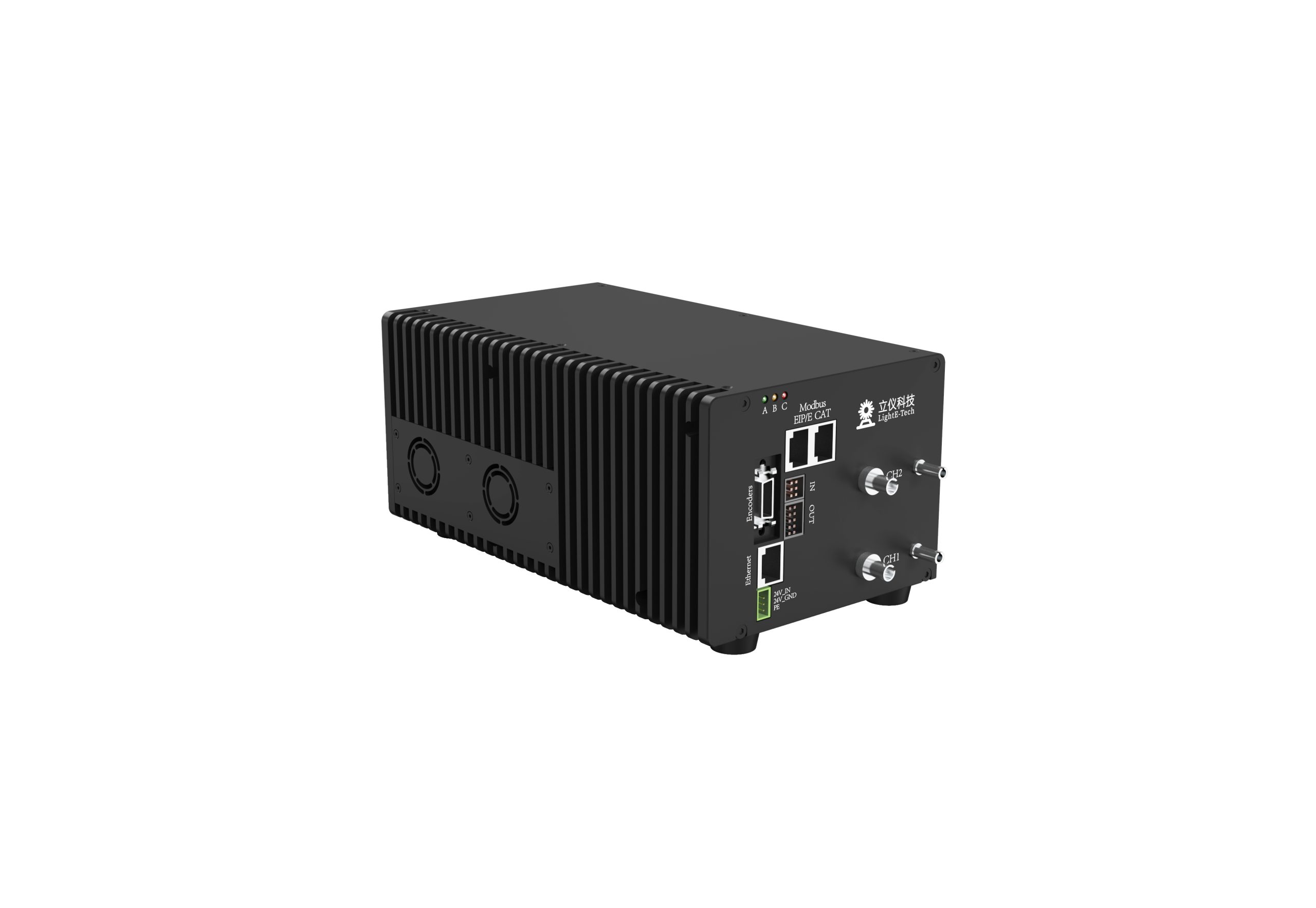

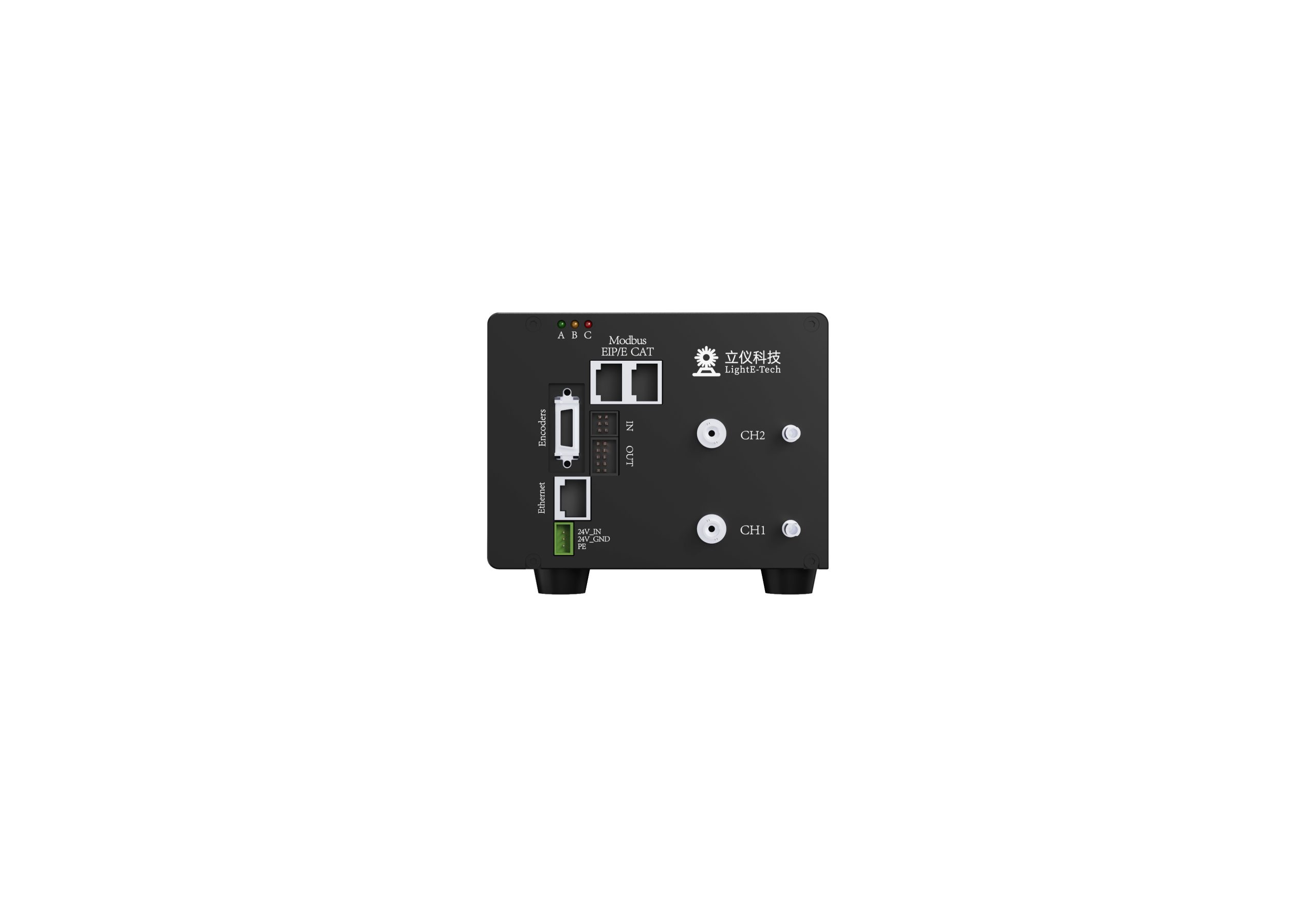

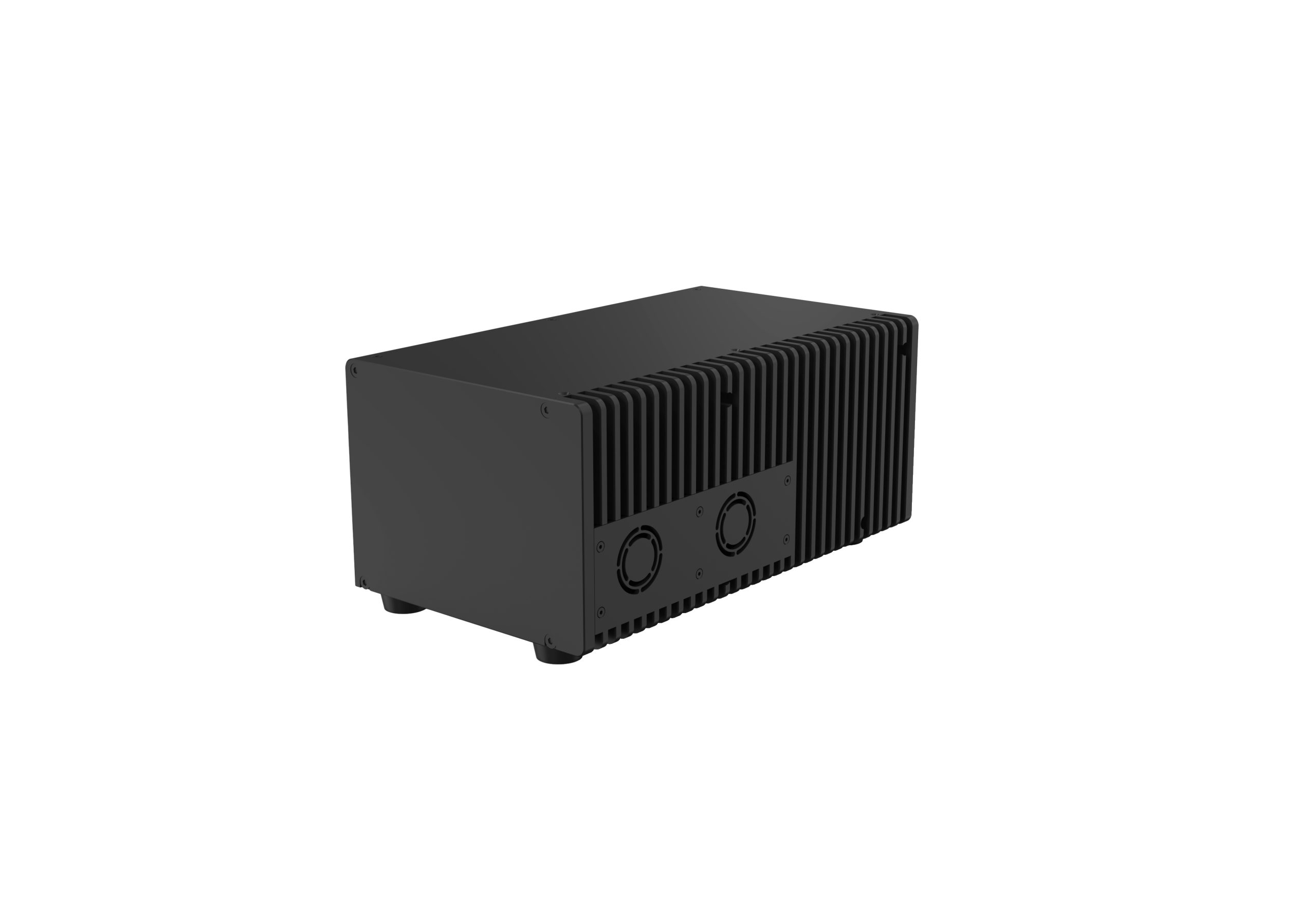

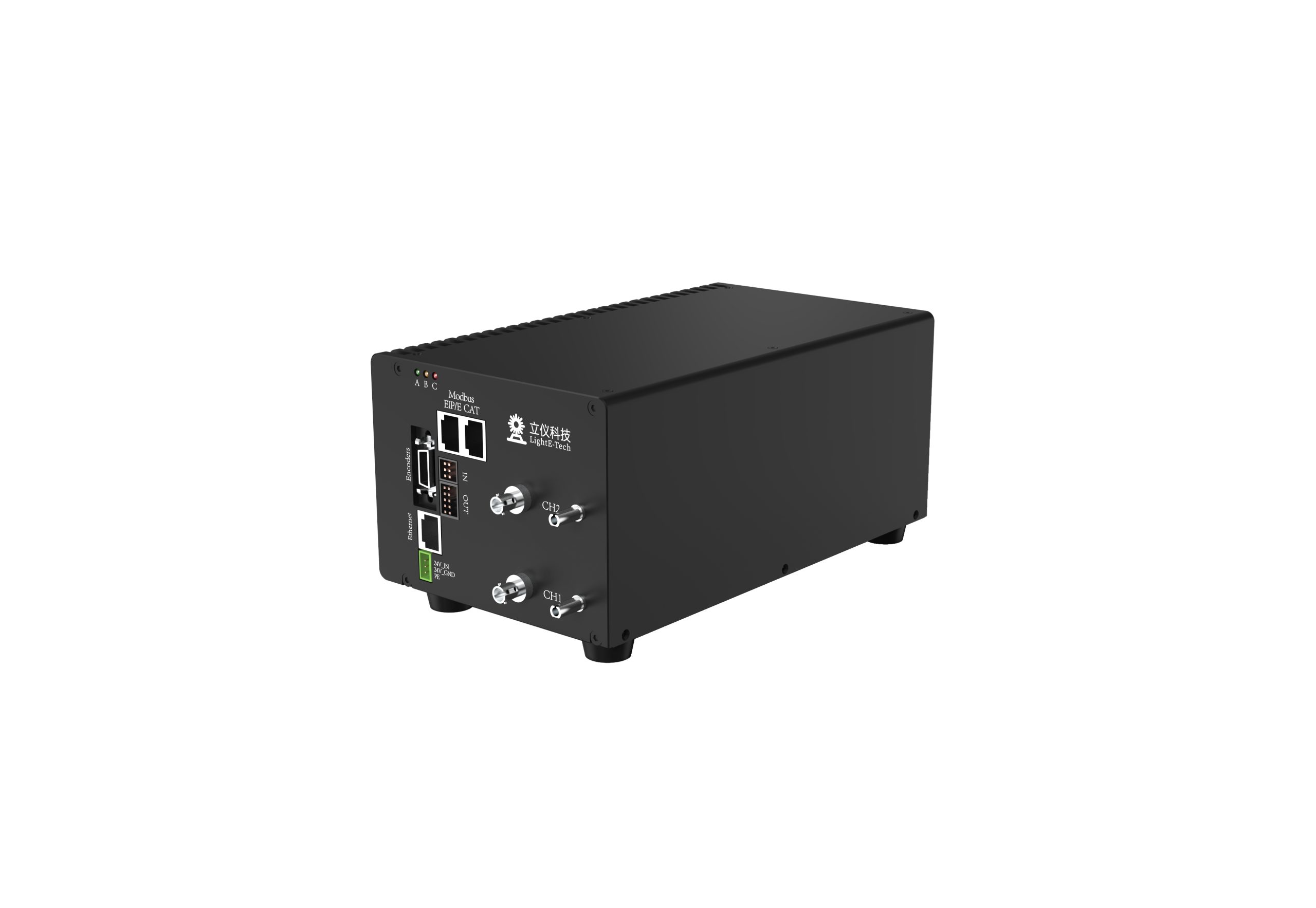

A Series Controller
Category	Embedded
Number of Connectable Sensors	1 / 2 Channels
Trigger Mode	I/O Hardware Trigger / Fixed-Frequency Continuous Trigger / Encoder Trigger
Communication Interfaces	Ethernet / EtherNet/IP / EtherCAT / Modbus TCP / RS485 / RS422 / Analog Output
Encoder	3-Axis AB-Phase Encoder
Sampling Rate	5 / 10 / 13 kHz
Supported Probe Measuring Ranges	1/4 Range / Half Range / Full Range
Internal Temperature Reading	Optional
Fiber Optic Compatibility	L50 / XL25 / XL63 / FL50 / FL63
Status & Value Display	PC Software Interface
Light Source	White LED
Operating Temperature	0–45°C
Operating Humidity	≤90% RH, Non-condensing, Non-freezing
Protection Rating	IP40 (with fiber connected or connector covered; higher ratings available upon customization)
Temperature Drift	Approx. 0.012% FS/°C (K/H Low-Temperature-Drift Version)

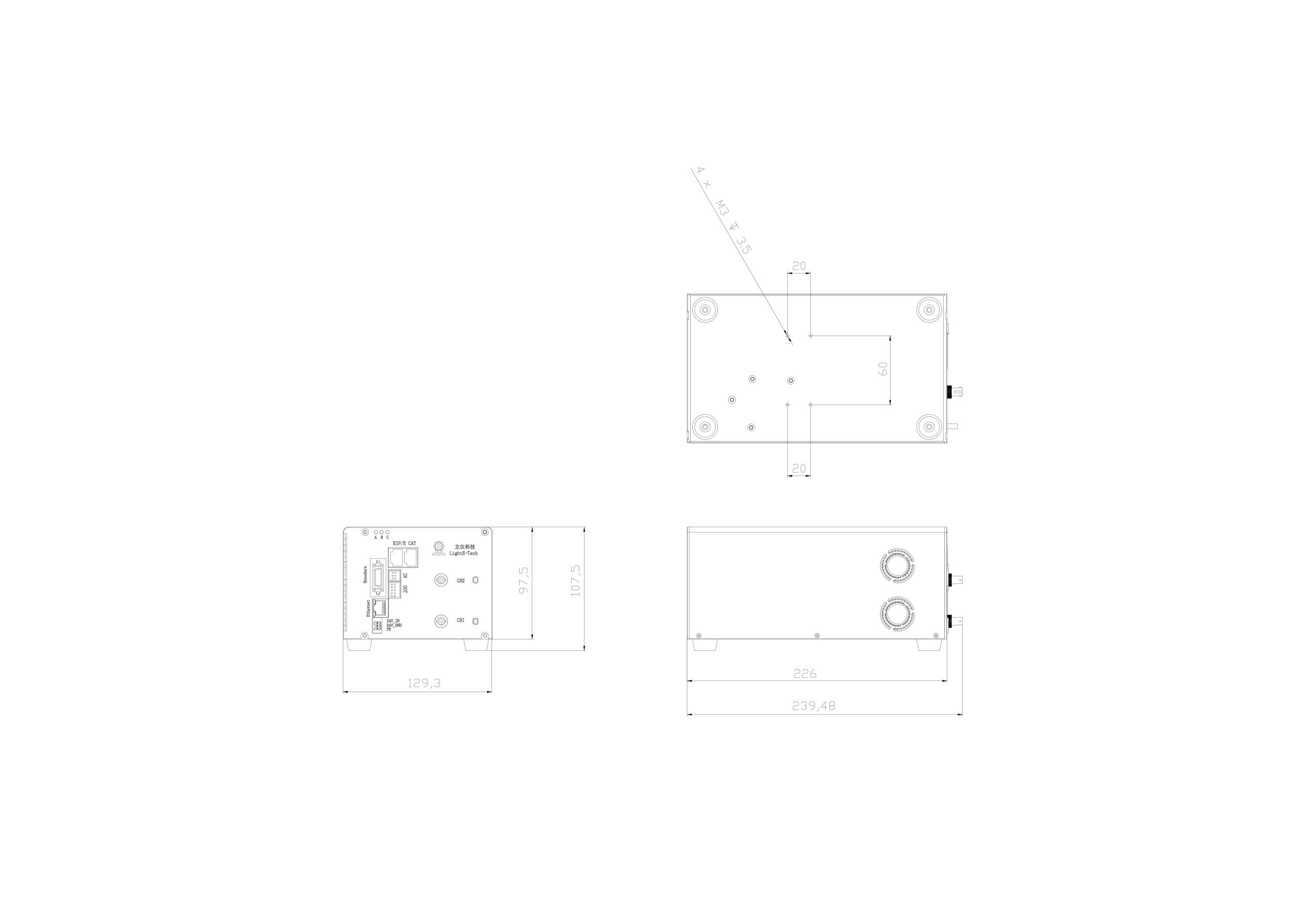

Dimensions (L × W × H)	239.5 × 129.5 × 97.5 mm
Weight	1-Channel Unit: 1877 g (±50 g) 2-Channel Unit: 2316 g (±50 g)
Supply Voltage	24 VDC ±10%, No Compressed Air Required
Current Consumption	2.3 A (Max.)
Maximum Power Consumption	55 W (Max.)
